Backup your emails to a Personal Folder File (Rev: 1.2)

If you are using Microsoft Outlook 2000/2002/2003/2007/2010 or higher version, you can create a Personal Folder File (.pst) in Microsoft Outlook and stores your emails into it. You can copy your Personal Folder File (.pst) to another computer/notebook for backup purpose. The Personal Folder File is limited by your hard disk capacity and not subject to the mailbox size limits on the server.

Microsoft Outlook can be configured to deliver new items to a .pst file, but doing so has several disadvantages including not being able to work with your items from other computers/notebooks or when using Microsoft Outlook Web Access with your Exchange e-mail account.

Creating a Personal Folder File in the Microsoft Outlook

1) For Microsoft Outlook 2000/2002/2003/2007, kindly click File > New > Outlook Data File.
New data file
For Microsoft Outlook 2000/2002/2003/2007

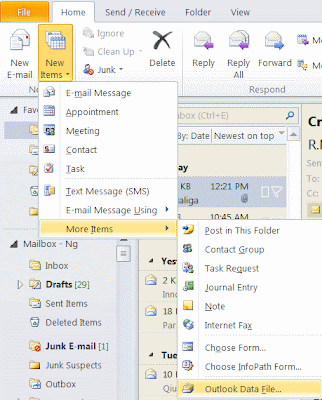

For Microsoft Outlook 2010, kindly click File > New Items > More Items > Outlook Data File.
Outlook 2010_new Data File
For Microsoft Outlook 2010

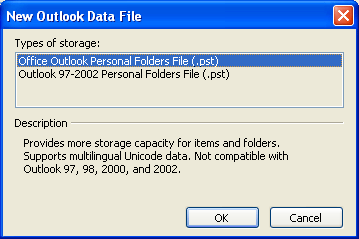

2) Kindly select which types of .pst file you’d like to create and click OK. (This step is not available for Microsoft Outlook 2010)

Types of storage
For Microsoft Outlook 2000/2002/2003/2007

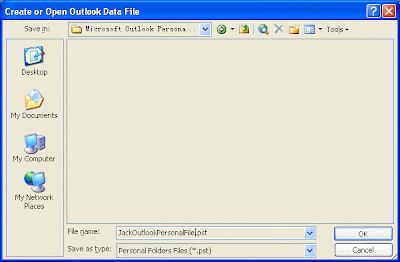

3) Kindly specify a directory that you want to save your .pst file, rename your filename accordingly and click OK. It is recommended that you create a folder in the D drive (not in C drive) and save your .pst file in it so that if you need to reinstall your operating system in the C drive, your data files in the D drive are still intact.

Directory to save
For Microsoft Outlook 2000/2002/2003/2007/2010
** Note **
The Personal Folders File are stored in your local drive, as specified by you. They do not reside in the Exchange Server. Therefore, you can only access those Personal Folders File on that computer whereby you stored them.

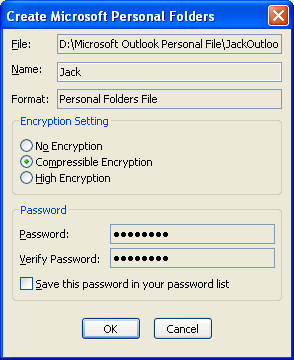

4) It is strongly recommended that you encrypted your Personal Folder File by giving it a password length of at least 8 combinations of letters, numbers, etc. Click the OK button after keying in your password.

In this example, I have created a Personal Folder File called Jack (JackOutlookPersonalFile.pst) and store it at
"d:\Microsoft Outlook Personal File" directory. Kindly take note of the directory path so that you can copy the Personal Folder File to another computer/notebook for backup purpose.

Encryption setting
For Microsoft Outlook 2000/2002/2003/2007

Moving your emails to your Personal Folder File

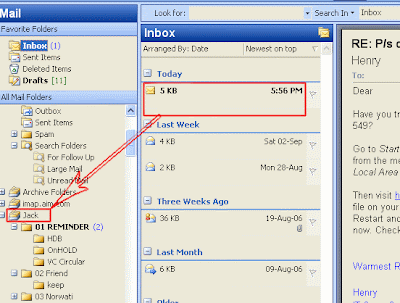

Simply drag and drop your emails from the Inbox to your created Personal Folder File. Press [CTRL] while dragging to copy emails instead of moving them.

It is recommended that you create different folders (Kindly select your Personal Folder File -> right click and select New Folders…) with different names and group your emails accordingly.

Move email to personal folder
** Note **
Upon transferring (moving) your emails to your Personal Folder File, they will no longer be available in your Inbox or the Mail Exchange Server. You can only access those emails from the Personal Folder File locally.

Create a rule based on a name or subject

Rule (or filters) refers to one or more automatic actions taken on e-mail messages that meet certain conditions, along with any exceptions to those conditions.

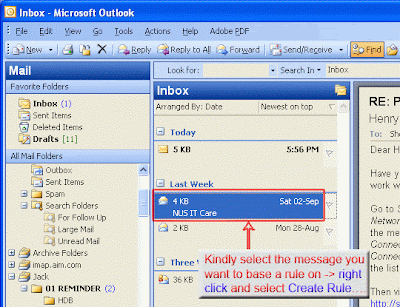

1) In the Microsoft Outlook Inbox, kindly select the message you want to base a rule on -> right click and select Create Rule….

Add rules

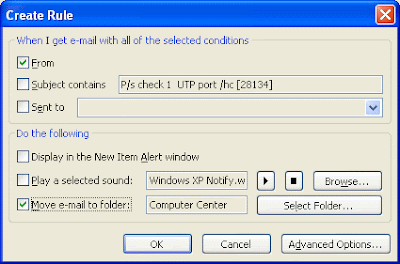

2) In the Create Rule dialog box, kindly select the conditions and actions you want to apply and click OK.

Creat eRule

3) To add more conditions, actions, or exceptions to the rule, click the Advanced Options…, and then follow the rest of the instructions in the Rules Wizard.

Q1) When I create a Personal Folder File and download the emails to it, the attachment of the older email which are stored in the Enterprise Vault cannot be downloaded to the Personal Folder File. Only a hyperlink is provided. Is there a way to overcome this problem ? Otherwise, the attachments will be lost when the email account is closed.

You will need to restore the emails from Enterprise Vault before moving them to the Personal Folder File. To do this, kindly open Microsoft Outlook and select the emails you want to move from the Enterprise Vault to the Personal Folder File. Then, in Microsoft Outlook, kindly click Tools > Enterprise Vault > Restore from Vault.

Once the restoration is finished, you can move those emails to your Personal Folder File.


[1] Microsoft Office


Alex said...

I heard about not bad application-outlook password backup, is a program, that helps users to display passwords and logins for all mail accounts, created in Microsoft Outlook as well as for files with *.pst extension, that are stored to keep your mail messages, can easily recover forgotten password for all Microsoft Outlook accounts, can copy recovered data to a text file, Outlook 2003 mail account and password backup is easy.

Jack Ng said...

I tried the demo version of Recovery ToolBox for Outlook Password v1.1.7.17 in computer B (not the original computer A that is currently using my .pst Outlook file in Microsoft Outlook). The first 3 characters of the password shown in the demo version is incorrect for my .pst Outlook file that I have copied to computer B. The software claimed that the recovered password may differ from the password that was originally set by the account owner. However, we are guaranteed that the recovery password will be accepted by Microsoft Outlook.

Hence, I suggest to add another layer of security by encrypting your .pst Outlook file with WinZip or WinRaR if you backup your .pst Outlook file to an external hardisk (in case you lost your external hardisk). There are software that can crack .zip or .rar file but it takes a long time if you choose a good password.
